Set Appliance State:

WARNING! - Mains voltage is expected during test follow
TOPs P4 live testing procedure
Mains Power On

Observation:

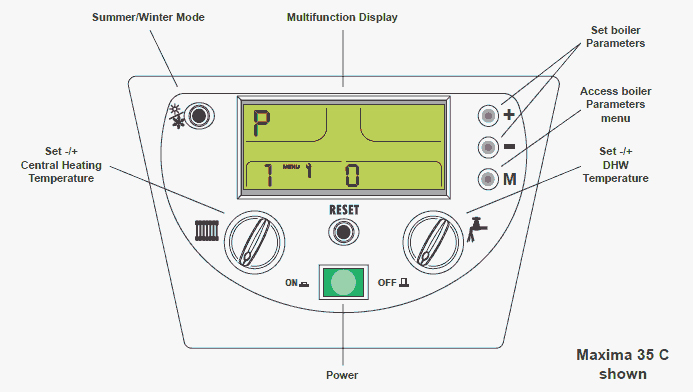

  • To access the parameter mode press the M and + keys
    together for 3 seconds (until display changes).
  • To move to the next parameter use the M key.
  • To alter the setting value use the + and - keys.
  • To exit parameter mode use the M and + keys
    together for 3 seconds (until display changes).
    Check parameter 5 (Central heating pump overrun time). By default it is set to 7 (minutes) but can be adjusted from 1 to 20 if required.
    Note:
    Parameter mode cannot be accessed until display has completed initialisation (approx. 10 seconds after power on).
