Set Appliance State:
Gas Off
| Isolate Mains Power to appliance as per TOPs P4 |
DHW demand from programmer
DHW temperature selector to high setting
Ensure hot water storage vessel is calling for heat
DHW temperature selector to high setting
Ensure hot water storage vessel is calling for heat
Boiler On/Off switch Off

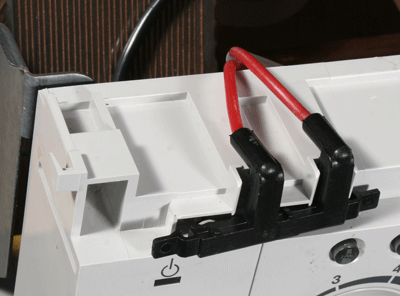

Pull forward one side of the electrode lead connector
from the control box as shown
Pull forward one side of the electrode lead connector
from the control box as shown
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Measurement:
Boiler On/Off switch On.
Reset lockout if necessary.
Allow fan to start, after approximately 30 seconds does sparking occur between the spark generator and the lead?
Note.
Sparking will last for approximately 5 seconds, then repeat after approximately 30 - 40 seconds, if lockout occurs reset until test is complete.
SPARKING OCCURS
SPARKING DOES NOT OCCUR
Reset lockout if necessary.
Allow fan to start, after approximately 30 seconds does sparking occur between the spark generator and the lead?
Note.
Sparking will last for approximately 5 seconds, then repeat after approximately 30 - 40 seconds, if lockout occurs reset until test is complete.
SPARKING OCCURS
SPARKING DOES NOT OCCUR
