FUSE RESISTANCE
Set Appliance State:
Set Multimeter to Resistance
Isolate Mains Power to appliance as per TOPs P4

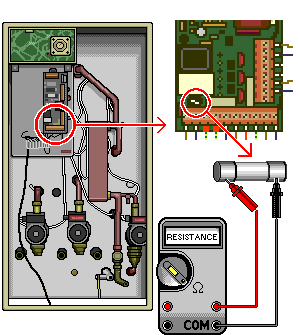

Remove the fuse from the fuse holder on the PCB
Measurement:
Measure the resistance of the fuse.
RESISTANCE CLOSED CIRCUIT
RESISTANCE OPEN CIRCUIT
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
