MAINS POWER SUPPLY
Set Appliance State:
Set Multimeter to AC Volts
WARNING!
Mains voltage is expected during test, follow TOPs P4 live testing procedure
Mains Power On
Measurement:

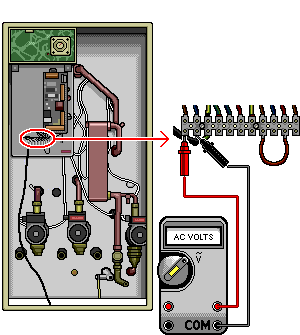

Measure voltage at terminal 1, marked L (brown lead) and terminal 2, marked N (blue lead) at the terminal block.
MAINS VOLTAGE PRESENT
MAINS VOLTAGE ABSENT
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
