Set Appliance State:
Mains Power Off
CH Demand
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Measurement:

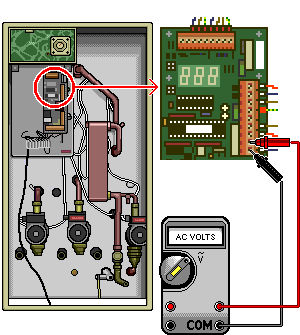

Measure voltage at connection 21 marked L (red lead) and connection 20, marked N (blue lead) on the top right hand connector at the PCB.

Isolate as per TOPs P4
and refit as necessary
