Isolate Mains Power to appliance as per TOPs P4
DHW service valve Off
DHW discharged and drained
Isolate flow and return valves and boiler discharged
Note:
Although appliance may be discharged and drained some water will still be present as it is dismantled
DHW service valve Off
DHW discharged and drained
Isolate flow and return valves and boiler discharged
Note:
Although appliance may be discharged and drained some water will still be present as it is dismantled
Observation:

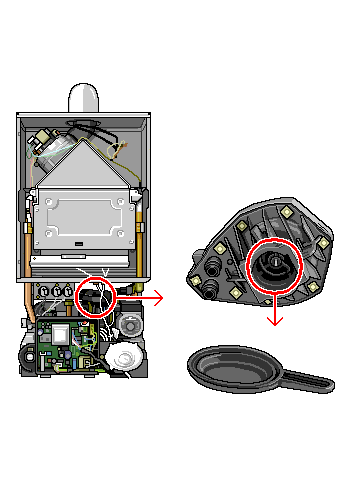

Remove three-way valve head (held by two clips).
Inspect the diaphragm for splits, damage or signs of stretching.
Inspect the diaphragm for splits, damage or signs of stretching.
Isolate as per TOPs P4
and refit as necessary
