BYPASS
Isolate Mains Power to appliance as per TOPs P4
Isolate flow and return valves
Appliance discharged and drained
Observation:

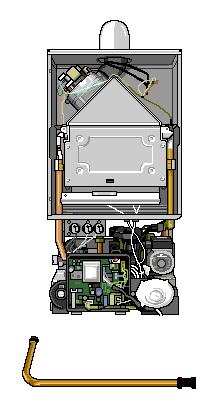

Check bypass tube for kinks and or blockage.
NB: Bypass is the armoured tube running between the flow and the return behind the electrical box
BYPASS TUBE CLEAR AND WITH NO KINKS
BYPASS TUBE BLOCKED OR KINKED
