Isolate Mains Power to appliance as per TOPs P4
Open main control box cover
Open main control box cover
Observation:

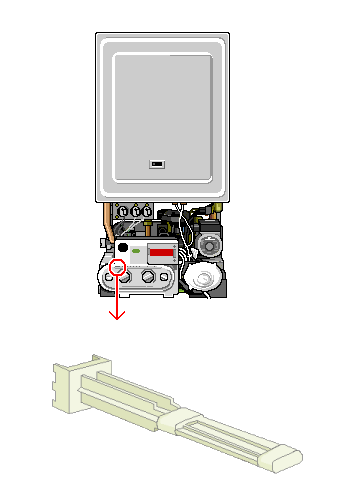

Inspect the push rod.
Is it positioned correctly and does it operate the reset switch in the PCB?
Note:
Care should be taken that the push rod is not lost or misplaced on removing or replacing control panel door.
Is it positioned correctly and does it operate the reset switch in the PCB?
Note:
Care should be taken that the push rod is not lost or misplaced on removing or replacing control panel door.
