Set Appliance State:
Mains Power Off
Gas On; Pilot On
Turn Hot Water Tap On
Selector Switch in summer position
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:
After approximately 5 seconds does main burner
increase to high flame.

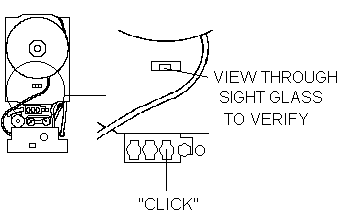

A 'click' will be heard from the Black Solenoid.
increase to high flame.
A 'click' will be heard from the Black Solenoid.
