POTENTIOMETER LEAD CHECK
Isolate Mains Power to appliance as per TOPs P4
Observation:

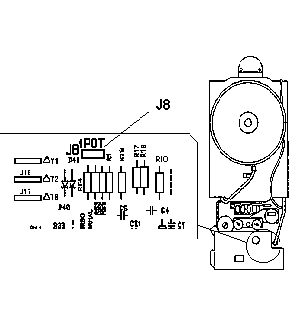

Ensure potentiometer lead is plugged into J8 on PCB and is undamaged.
LEAD FITTED OK
LEAD NOT FITTED OK OR DAMAGED
