Set Appliance State:
Gas Off
CH Demand
Isolate Mains Power to appliance as per TOPs P4

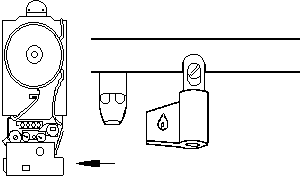

Remove inlet pressure test point screw adjacent to
the gas service valve
Attach U-gauge
Remove inlet pressure test point screw adjacent to
the gas service valve
Attach U-gauge
Gas On
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Observation:
Allow ignition to commence.
Does the inlet pressure remain constant and above a minimum of 18 mbar?
Note:
When pressure gauge is removed the pressure test point should be tightened and checked for gas tightness.
Does the inlet pressure remain constant and above a minimum of 18 mbar?
Note:
When pressure gauge is removed the pressure test point should be tightened and checked for gas tightness.
Isolate as per TOPs P4
and refit as necessary
