Set Appliance State:
Mains Power Off
Gas Off
Selector Switch in mid (0) position
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Measurement:

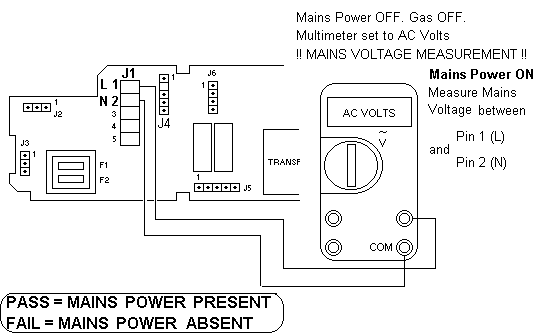

Measure mains voltage on connector J1 terminal 1 (L) and terminal 2 (N).

Isolate as per TOPs P4
and refit as necessary
