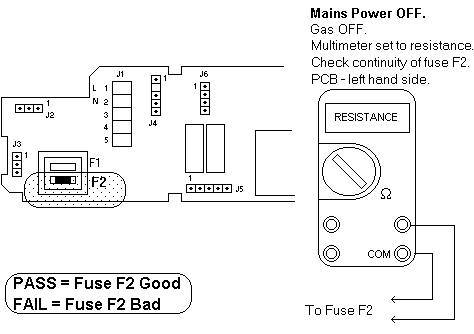

FUSE F2
Set Appliance State:
Gas Off
Set Multimeter to Resistance
Isolate Mains Power to appliance as per TOPs P4
Selector Switch in mid (0) position
Measurement:
Check continuity of Fuse F2
FUSE F2 IS SHORT CIRCUIT
FUSE F2 IS OPEN CIRCUIT
