Set Appliance State:
Gas Off
Set Multimeter to Resistance
Isolate Mains Power to appliance as per TOPs P4

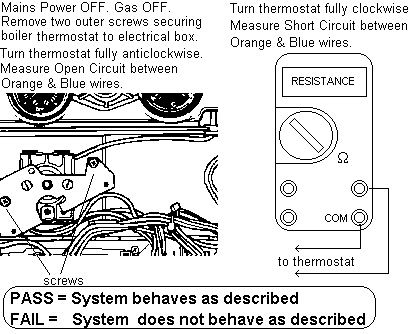

Remove two outer screws, securing Boiler Control Thermostat to electrical control box.
Remove two outer screws, securing Boiler Control Thermostat to electrical control box.
Measurement:
Turn Boiler Control Thermostat fully anticlockwise.
Measure open circuit between the Orange + Blue wires.
Turn Boiler Control Thermostat fully clockwise.
Measure short circuit between the Orange + Blue wires.
Measure open circuit between the Orange + Blue wires.
Turn Boiler Control Thermostat fully clockwise.
Measure short circuit between the Orange + Blue wires.
Isolate as per TOPs P4
and refit as necessary
