FUSE F1
Set Appliance State:
Gas Off
Set Multimeter to Resistance
Isolate Mains Power to appliance as per TOPs P4
Selector Switch in mid (0) position.
Measurement:

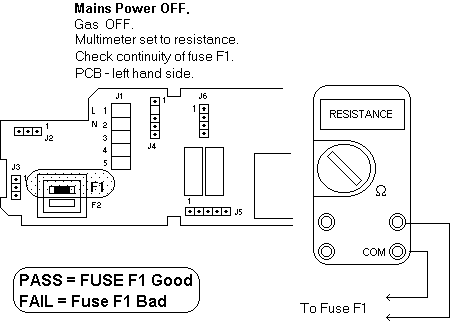

Check continuity of fuse F1
FUSE F1 SHORT CIRCUIT
FUSE F1 OPEN CIRCUIT
