Set Appliance State:
Mains Power Off
Gas Off
Selector Switch in Summer (I) position

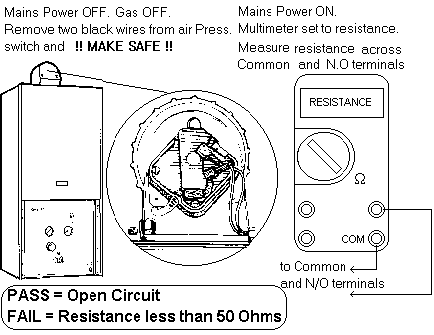

Remove the two black wires from the air pressure switch and make safe.
Remove the two black wires from the air pressure switch and make safe.
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Measurement:
Measure the resistance across the
COMMON and N.O. terminals
COMMON and N.O. terminals

Isolate as per TOPs P4
and refit as necessary
