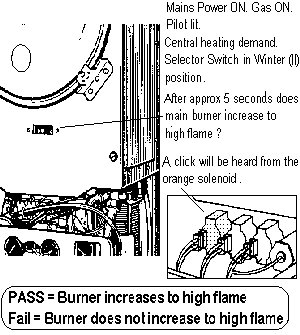

Set Appliance State:
Mains Power Off
Gas On; Pilot On
CH Demand
Selector Switch in Winter (II) position
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Observation:
After approximately 5 seconds does main burner increase to high flame.
A 'click' will be heard from the Orange Solenoid.
A 'click' will be heard from the Orange Solenoid.
