G.C. Number 47 980 01
Case removal

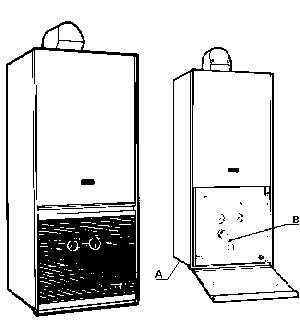

Remove two screws (A) bottom rear of boiler.
Remove screw (B) centre of lower front panel.
Remove control knobs
Remove case by easing forward at bottom and lifting off lugs at top.
If necessary, remove the lower control cover (4 screws) and lift off the upper front panel before removing case.
