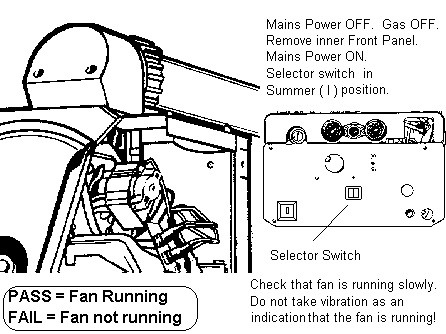

Set Appliance State:
Mains Power Off
Gas Off
Remove inner front panel
Selector Switch in Summer (I) position
Selector Switch in Summer (I) position
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Observation:
Is the fan running (slowly) ?
Do not take sound or vibration as an indication that the fan is running !
Do not take sound or vibration as an indication that the fan is running !
Isolate as per TOPs P4
and refit as necessary
