Set Appliance State:
Mains Power Off
Selector Switch in Summer (I) position
Gas On
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Observation:

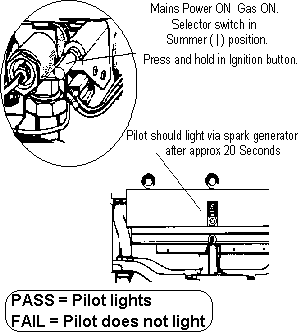

Press the ignition button and hold in.
After approx 20 seconds the spark generator passes a continuous stream of sparks to light the pilot.
After approx 20 seconds the spark generator passes a continuous stream of sparks to light the pilot.
