Set Appliance State:
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:
Rotate the CH control knob to maximum (fully clockwise).
If it is already at maximum turn it down and back up.
Does the display change to radiator temperature screen?
Is the maximum flow temperature set appropriately for the system?

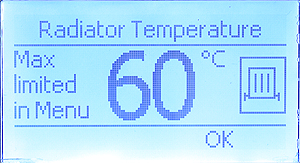

Default is 80°C but maximum can be reduced in installer menu as in the picture.
Note:
If appliance has an outdoor sensor fitted then CH control knob will adjust room temperature. Maximum room temperature is 30°C.
If it is already at maximum turn it down and back up.
Does the display change to radiator temperature screen?
Is the maximum flow temperature set appropriately for the system?
Default is 80°C but maximum can be reduced in installer menu as in the picture.
Note:
If appliance has an outdoor sensor fitted then CH control knob will adjust room temperature. Maximum room temperature is 30°C.
