WATER VALVE DIAPHRAGM CHECK
Isolate Mains Power to appliance as per TOPs P4
Remove water valve and strip
Observation:
Check condition of diaphragm.

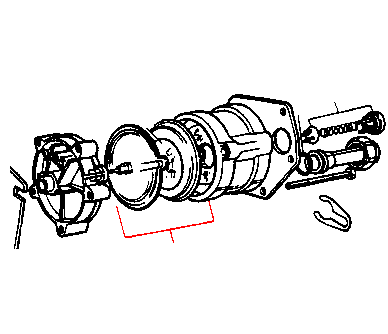

Differential
valve kit
Diaphragm
DIAPHRAGM OK
DIAPHRAGM SPLIT
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
