Set Appliance State:
Mains Power Off
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Measurement:

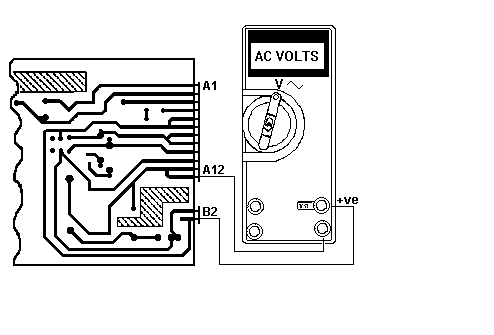

Press ON switch and measure voltage between B2 (live)
and A11/A12 (neutral) on PCB, track-side, bottom right.
Mains voltage should be present.
Release ON switch, voltage should fall to 0V.
and A11/A12 (neutral) on PCB, track-side, bottom right.
Mains voltage should be present.
Release ON switch, voltage should fall to 0V.

Isolate as per TOPs P4
and refit as necessary
