Set Appliance State:
Boiler ON
Selector lever LEFT - HW Position
Selector lever LEFT - HW Position
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Observation:
Turn on HW tap, boiler lights to high flame.
Leave tap running, boiler should remain at high flame.

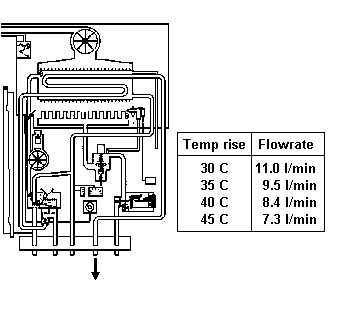

Monitor output temperature of water. Temperature should match the figures in the table (varies with flow rate).
Leave tap running, boiler should remain at high flame.
Monitor output temperature of water. Temperature should match the figures in the table (varies with flow rate).
