Set Appliance State:
Gas On; Pilot On
Boiler On
Selector lever RIGHT - CH/HW Position
System calling for heat
Clock On
Selector lever RIGHT - CH/HW Position
System calling for heat
Clock On
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Observation:

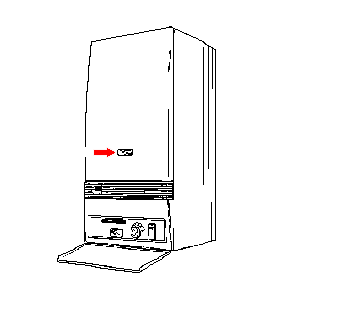

Observe flame through window.
With a demand for heat, boiler will light up.
Temperature can be controlled via boiler thermostat.
With a demand for heat, boiler will light up.
Temperature can be controlled via boiler thermostat.
