INFORMATION CASE REMOVAL

None

vm vitodens 100-w b1kc 35 kw combi outer case .gif



vm vitodens 100-w b1kc 35 kw combi inner case .gif



vm vitodens 100-w b1kc 35 kw combi inner blr pcb dwn .gif

@highlight circle05.gif

@highlight circle05.gif

vm vitodens 100-w b1kc 35 kw combi inner blr pcb ex .gif

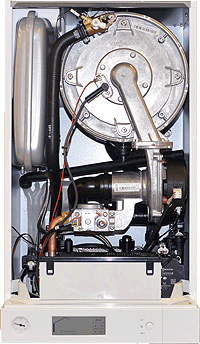

Undo the two screws on the underside of the facia; do not remove them completely. Remove the front panel.

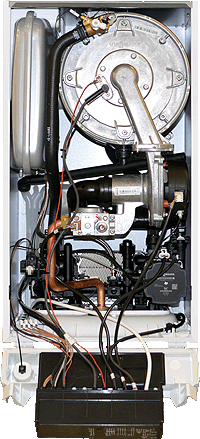

Release plastic clips, hinge PCB down.

Plastic clips

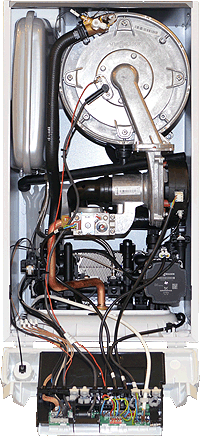

Access PCB, release four plastic clips, remove cover
