Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |

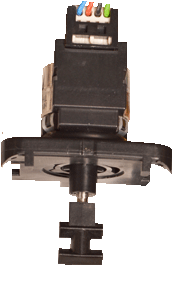

Remove diverter motor from its housing and place in a safe location to observe its movement
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:
Enter the installer mode and access level 6 - t5.
(click here for information on how to do this)
Switch between the Heating position (0) and Hot Water position (1) while observing the diverter valve motor.
Does the diverter valve move to the correct positions?
Note:
HW position is fully extended, CH position is fully retracted.
Please choose one of the outcomes below:
MOTOR MOVES AS ABOVE
MOTOR DOES NOT MOVE AS ABOVE
(click here for information on how to do this)
Switch between the Heating position (0) and Hot Water position (1) while observing the diverter valve motor.
Does the diverter valve move to the correct positions?
Note:
HW position is fully extended, CH position is fully retracted.
Please choose one of the outcomes below:
MOTOR MOVES AS ABOVE
MOTOR DOES NOT MOVE AS ABOVE
