Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |

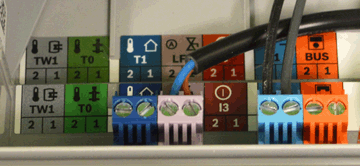

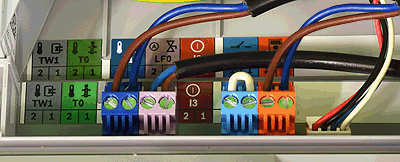

Remove existing wiring from the no voltage controls connector and replace it with a wire link
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:
Does the boiler now respond to the CH demand?
Note:
Boiler will take approximately 45 seconds after power on before responding to the CH demand.
Note:
Boiler will take approximately 45 seconds after power on before responding to the CH demand.
Isolate as per TOPs P4
and refit as necessary
