Set Appliance State:
Gas Off
| Isolate Mains Power to appliance as per TOPs P4 |
Turn Hot Water Tap On

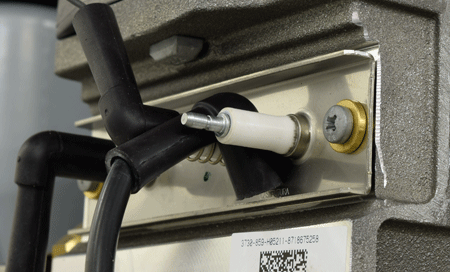

Wedge the ignition lead between the 2 spark electrodes as shown in the image
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:
Reset appliance as necessary (hold down both arrow buttons until display changes).
Allow the fan to run / ignition sequence to commence and observe the end of the ignition lead.
Can a strong consistent spark be seen between the end of the ignition lead and the electrode bracket?
Allow the fan to run / ignition sequence to commence and observe the end of the ignition lead.
Can a strong consistent spark be seen between the end of the ignition lead and the electrode bracket?
