Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Set Multimeter to Resistance
Disconnect the detection lead from the ignition control box
Measurement:
Test 1:

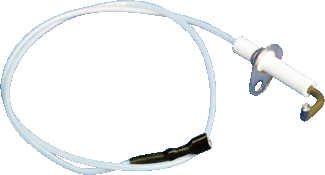

Inspect the detection electrode for good condition, cleanliness, damaged ceramic and check the condition of the lead.
Check the gap from the burner is 6.5mm +/-1mm.
Test 2:
Measure the resistance from the tip of the detection electrode to the ignition control box connector.
Expect continuity / zero resistance.
Is the electrode/lead satisfactory and the resistance as expected?
Note:
This test is carried out with the electrode in situ but is shown removed for clarity.
Inspect the detection electrode for good condition, cleanliness, damaged ceramic and check the condition of the lead.
Check the gap from the burner is 6.5mm +/-1mm.
Test 2:
Measure the resistance from the tip of the detection electrode to the ignition control box connector.
Expect continuity / zero resistance.
Is the electrode/lead satisfactory and the resistance as expected?
Note:
This test is carried out with the electrode in situ but is shown removed for clarity.
Isolate as per TOPs P4
and refit as necessary
