Set Appliance State:

Isolate Mains Power to appliance as per TOPs P4
Set Multimeter to Resistance Set meter to measure resistance
CH Demand

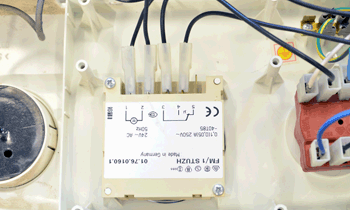

Remove the wires from terminals 3 and 4 on the integral timer

Measurement:

Measure the resistance between terminals 3 and 4 on the integral timer.
Expect short circuit / zero resistance.
Is the resistance measured as expected?
