Set Appliance State:

Mains Power Off
Set Multimeter to AC Voltage Set meter to measure AC Volts
CH Demand
Boiler On/Off Switch ON
CH Mode Switch in its 24hrs position
WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure
Mains Power On

Measurement:

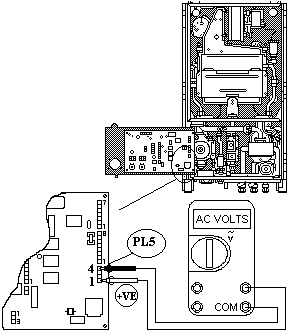

Measure the Diverter Valve Voltage across PCB connector PL5 connection 1 (Live, Brown wire) and connection 4 (Neutral, Blue wire).
