Set Appliance State:

Turn Hot Water Tap On
Isolate Mains Power to appliance as per TOPs P4
Boiler On/Off Switch ON

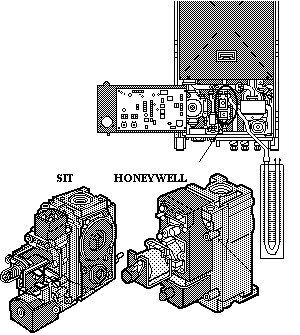

Connect a U-Gauge to the Gas Valve outlet pressure test point
WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure
Mains Power On

Measurement:

With the DHW Tap fully open and the DHW Temperature Potentiometer set to maximum, does the Burner ignite and operate at its maximum gas pressure of approximately 34.2 mb?
Note:
When U-gauge is removed pressure test point should be tightened & checked for gas soundness.
