Set Appliance State:
Mains Power Off
CH Demand
Boiler On/Off Switch ON
CH Mode Switch in its 24hrs position
CH Mode Switch in its 24hrs position
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Observation:

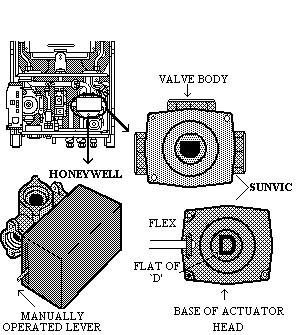

Honeywell:
No or little resistance should be felt when the manual operation lever on the Diverter Valve is moved to its open position.
Sunvic:
Remove actuator head, flat of 'D' should lie across the line of the flex.
No or little resistance should be felt when the manual operation lever on the Diverter Valve is moved to its open position.
Sunvic:
Remove actuator head, flat of 'D' should lie across the line of the flex.
Isolate as per TOPs P4
and refit as necessary
