Set Appliance State:
Mains Power Off
Gas Off
Turn Hot Water Tap On
Boiler On/Off Switch ON
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Observation:

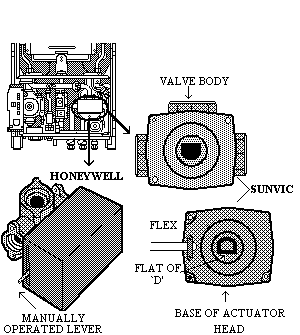

Honeywell:
Resistance should be felt on Manual Operation lever as it is pushed across.
Sunvic:
Remove two screws holding actuator head to base and remove head.
Flat of 'D' on actuator head should lay inline with the line of the flex.
Resistance should be felt on Manual Operation lever as it is pushed across.
Sunvic:
Remove two screws holding actuator head to base and remove head.
Flat of 'D' on actuator head should lay inline with the line of the flex.
Isolate as per TOPs P4
and refit as necessary
