COMBUSTION MODE PAGE

Set Appliance State:

Turn Hot Water Tap On

WARNING! - Mains voltage is expected during test follow
TOPs P4 live testing procedure

Mains Power On

Observation:

To activate the appliances maximum and minimum output modes follow the instructions below:
Step 1:
Hold the power and both radiator buttons (fig 1) together
for 10 seconds until the display alternates Pr and 01.

fig. 1

fig. 2

fig. 3

Step 2:

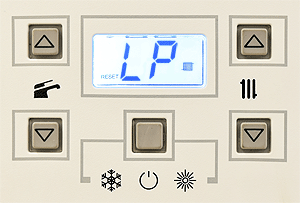

Hold both radiator buttons (fig. 2) until display alternates LP and the flow temperature.
Boiler is now on minimum output.

Step 3:

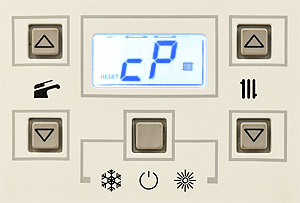

Press the radiator up button twice, display should now alternate cP and the flow temperature.
Boiler is now on maximum output.
