Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Measurement:
CASE REMOVAL

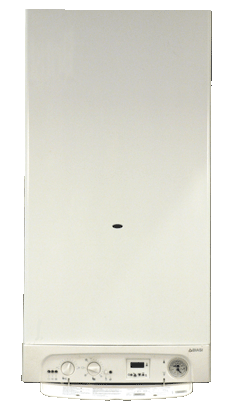

4758325 BIASI RIVA PLUS HE M296 28SM/C
Remove 3 screws from top of front panel and slide front panel off.
To remove side panels, remove screws from bottom and slide away at bottom slightly and lift to free from top lug and remove.
4758325 BIASI RIVA PLUS HE M296 28SM/C
Remove 3 screws from top of front panel and slide front panel off.
To remove side panels, remove screws from bottom and slide away at bottom slightly and lift to free from top lug and remove.
