Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
CH Demand
Ensure radiators are open and water can circulate around the system

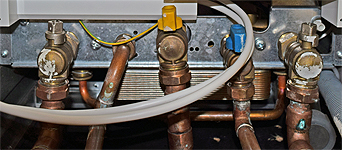

Attach temperature clamps to the CH flow pipe and to the internal bypass pipe (both located underneath boiler)
Attach temperature clamps to the CH flow pipe and to the internal bypass pipe (both located underneath boiler)
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:
Allow the boiler to fire and run for at least 2 minutes.
Measure the temperature of the flow pipe and the bypass pipe.
Is the flow pipe hotter than the by-pass pipe?
Or is the bypass pipe the same temperature or hotter than
the flow pipe, indicating that the internal bypass has opened.
Measure the temperature of the flow pipe and the bypass pipe.
Is the flow pipe hotter than the by-pass pipe?
Or is the bypass pipe the same temperature or hotter than
the flow pipe, indicating that the internal bypass has opened.
