Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
CH Demand
CH temperature control to maximum
DHW temperature control to minimum
CH temperature control to maximum
DHW temperature control to minimum

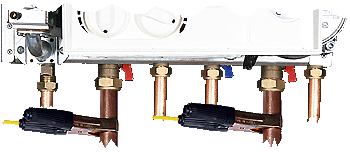

Attach temperature clamps to flow and return pipes underneath boiler
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Observation:
Place a demand for heating and allow the boiler to heat for a few min.
Using temperature clamps for the FGA (Flue Gas Analyser) measure the temperature on the primary flow and return pipes under the boiler, there should be a differential of approx. 10-15°C between the flow and return.
Using temperature clamps for the FGA (Flue Gas Analyser) measure the temperature on the primary flow and return pipes under the boiler, there should be a differential of approx. 10-15°C between the flow and return.
