Set Appliance State:
DHW Demand
DHW Selector in Maximum (+) position
CH Selector in Minimum (-) position
ON/OFF Switch in ON position
DHW Selector in Maximum (+) position
CH Selector in Minimum (-) position
ON/OFF Switch in ON position
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Observation:
Run the hot tap and allow the boiler to heat for a short time.

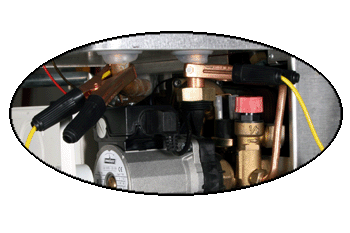

Using temperature probes for the FGA (Flue Gas Analyser) measure the temperature on the primary flow pipe just above the over heat stat and return pipe just above the pump, there should be a temperature differential of between 14-18°C across the flow and return pipes.
Using temperature probes for the FGA (Flue Gas Analyser) measure the temperature on the primary flow pipe just above the over heat stat and return pipe just above the pump, there should be a temperature differential of between 14-18°C across the flow and return pipes.
