Set Appliance State:
Mains Power Off
Turn Hot Water Tap On
DHW temperature control to maximum
CH temperature control to minimum
DHW temperature control to maximum
CH temperature control to minimum
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Measurement:

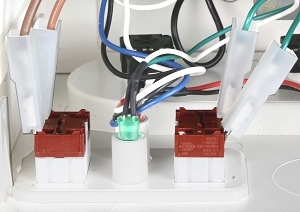

Measure on the left hand switch the voltage across the thick brown lead ( Mains Live) and a convenient Neutral.
Expect Mains Voltage
Expect Mains Voltage

Isolate as per TOPs P4
and refit as necessary
