Set Appliance State:
Mains Power Off
Turn Hot Water Tap On
DHW temperature control to maximum
CH temperature control to minimum
DHW temperature control to maximum
CH temperature control to minimum
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |

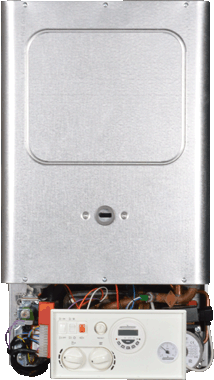

Measurement:
Test 1:
Test between Pin 10 (Live in) and a suitable Earth.
Expect mains voltage.
Test 2:
Test between Pin 11 (Neutral in) and a suitable Earth.
Expect approximately 15V AC or less.
Test between Pin 10 (Live in) and a suitable Earth.
Expect mains voltage.
Test 2:
Test between Pin 11 (Neutral in) and a suitable Earth.
Expect approximately 15V AC or less.
