MAINS POWER (INPUT)
Set Appliance State:
Mains Power Off
Set Multimeter to AC Volts
WARNING!
Mains voltage is expected during test, follow TOPs P4 live testing procedure
Mains Power On
Measurement:

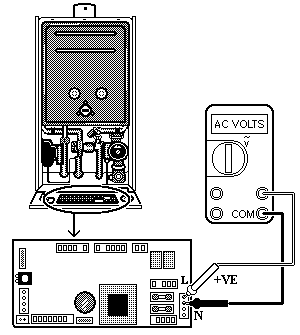

Measure voltage across the live terminal marked IN, L and the neutral terminal marked IN, N.
MAINS VOLTAGE PRESENT
MAINS VOLTAGE ABSENT
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
