CH OPERATION

Set Appliance State:

CH Demand

Isolate Mains Power to appliance as per TOPs P4
Selector switch to heating and hot water position
CH temperature selector to MAX
DHW temperature selector to MIN

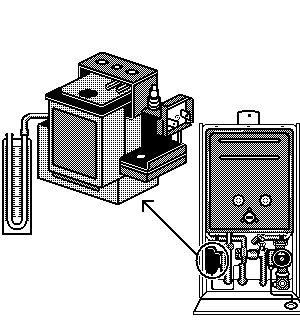

Attach U-gauge to gas valve outlet pressure test point

WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure

Mains Power On

Measurement:

Allow boiler to fire.
Does the burner pressure increase to its set pressure after approximately 90 seconds?
Does the CH system begin heating correctly?

Notes:
1. If the CH burner pressure has been set at its minimum rate,
then the burner pressure will not increase.
2. When the U-gauge is removed, ensure the pressure test point is checked for soundness.
