Set Appliance State:
Turn Hot Water Tap On
Isolate Mains Power to appliance as per TOPs P4
Selector switch in OFF position
CH temperature selector to MIN
DHW temperature selector to MAX

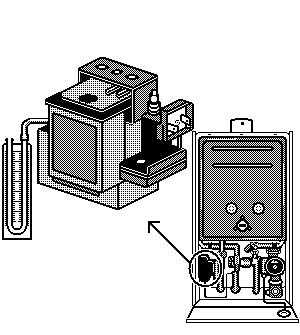

Attach U-gauge to gas valve outlet pressure test point
Set flow rate at tap to approximately 5 l/min
Selector switch in OFF position
CH temperature selector to MIN
DHW temperature selector to MAX
Attach U-gauge to gas valve outlet pressure test point
Set flow rate at tap to approximately 5 l/min
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Measurement:
Turn selector switch to the water heating position.
Allow burner to fire and water to heat.
Does the burner pressure modulate as the water temperature is satisfied?
Note:
When pressure gauge is removed the pressure test point should be tightened and checked for gas tightness.
Allow burner to fire and water to heat.
Does the burner pressure modulate as the water temperature is satisfied?
Note:
When pressure gauge is removed the pressure test point should be tightened and checked for gas tightness.
Isolate as per TOPs P4
and refit as necessary
