Set Appliance State:

Set Multimeter to AC Volts Set meter to measure AC Volts
Turn Hot Water Tap On
Isolate Mains Power to appliance as per TOPs P4
Remove terminal cover from pump
Selector switch to hot water position
CH temperature selector to minimum
DHW temperature selector to maximum
WARNING! - Mains voltage is expected during test follow
TOPs P4 live testing procedure
Mains Power On

Measurement:

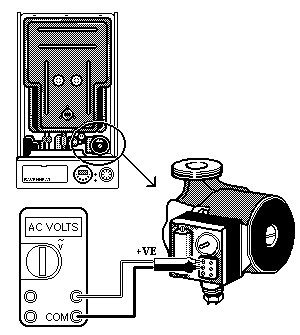

Measure voltage across the live terminal marked L (brown wire) and the neutral terminal marked N (blue wire) on the pump terminal strip.
