Set Appliance State:
Mains Power Off
Turn Hot Water Tap On
Selector switch to hot water position
CH temperature selector to minimum
DHW temperature selector to maximum
CH temperature selector to minimum
DHW temperature selector to maximum
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Measurement:
Allow fan to run.

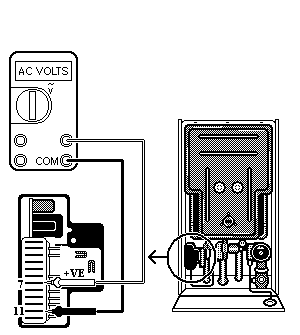

Measure voltage across connection 7 (live, brown wire) and connection 11 (neutral, blue wire) on ignition PCB.
Note:
Connections are numbered from the top (1) to the bottom (12).
Measure voltage across connection 7 (live, brown wire) and connection 11 (neutral, blue wire) on ignition PCB.
Note:
Connections are numbered from the top (1) to the bottom (12).

Isolate as per TOPs P4
and refit as necessary
