Set Appliance State:
Mains Power Off
Set Multimeter to AC Volts
CH Demand
Selector switch to heating and hot water position
CH temperature selector to maximum
DHW temperature selector to minimum
CH temperature selector to maximum
DHW temperature selector to minimum
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Measurement:
Clock in timed mode in an on period.

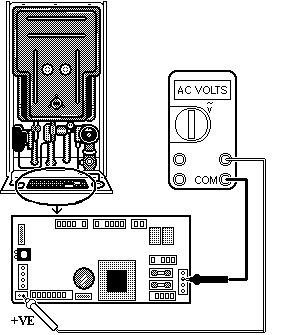

Measure voltage across the connection marked C, on the two connection connector, (this is adjacent to the external control terminal strip), and the neutral connection on the main terminal block.
Measure voltage across the connection marked C, on the two connection connector, (this is adjacent to the external control terminal strip), and the neutral connection on the main terminal block.
Isolate as per TOPs P4
and refit as necessary
