Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |

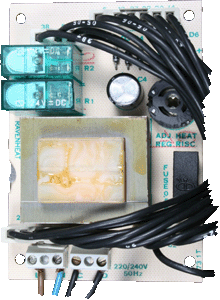

Gain access to PCB (use Insulation Mat as required)
Main switch in ON position
Main switch in ON position
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Measurement:
Measure 24VAC or greater across connection C
on PCB and Neutral.
on PCB and Neutral.
