Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
INFORMATION CASE REMOVAL

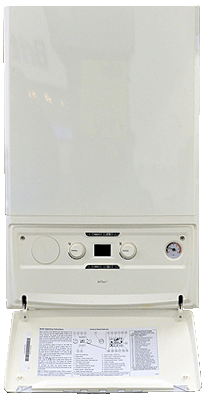

Remove the two screws on the facia & remove.

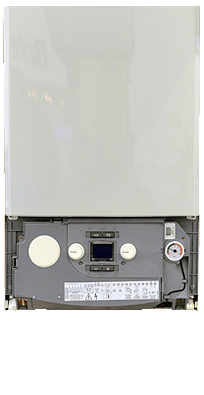

Remove the two screws on the front cover & remove.

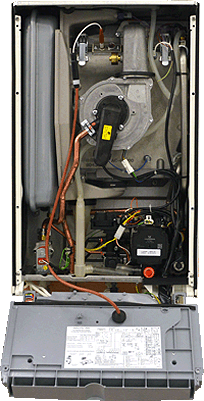

For access to main PCB release two plastic clips & lower PCB panel.
Disconnect ignition lead from PCB, remove three screws & remove cover, reconnect ignition lead.
Ensure ignition lead is reconnected to PCB when access gained
For access to electrical connections release two plastic clips & remove panel.
